80 Tons Side Tipper Trailer

80 Tons Side Tipper Trailer For Sale

Genron’s 80 Tons Side Tipper Trailer is well designed. It’s made with high-strength steel to ensure durability and reliability. The vehicle has three axles. It is designed to improve loading efficiency and convenience. It can carry 60 to 80 tonnes. It can adapt to many different working environments and needs. This side discharge semi-trailer not only improves the speed of material loading and unloading, but its unique structural design allows for efficient operation on busy job sites.

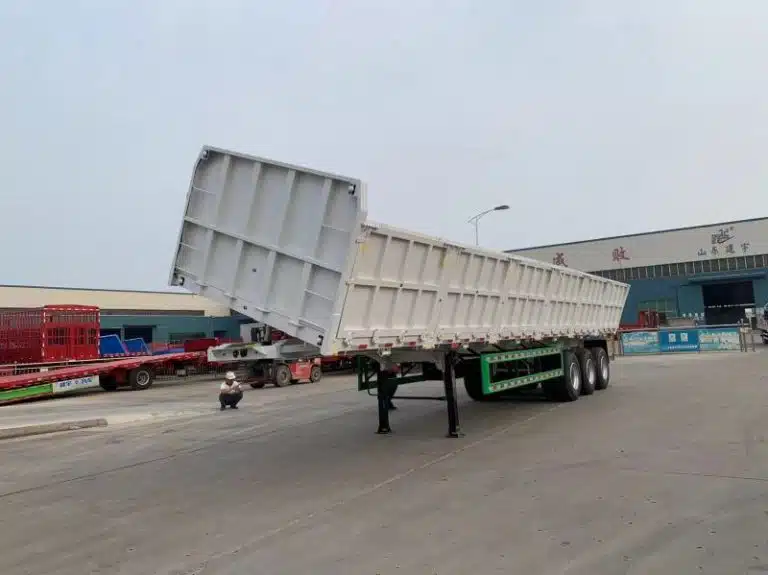

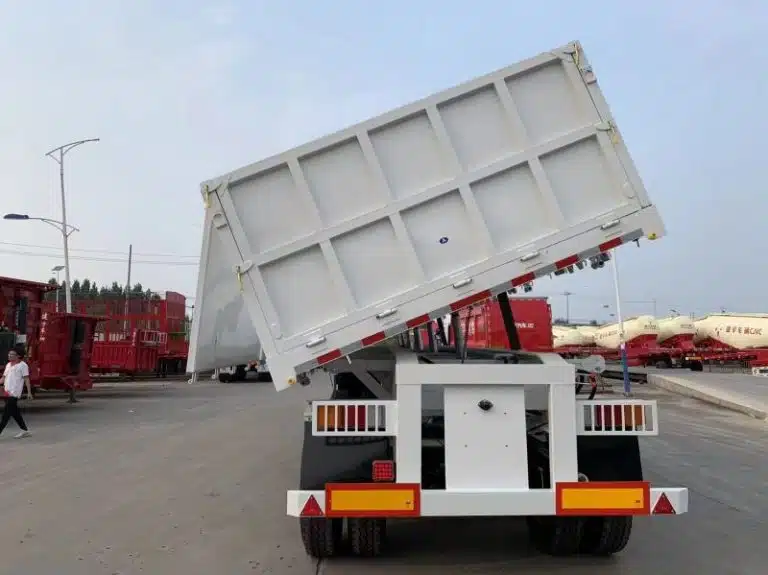

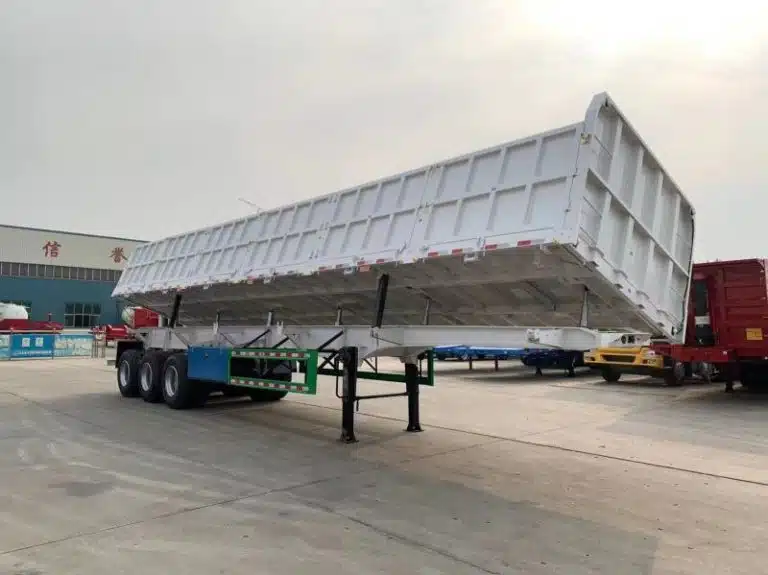

The robust structural design of the white 80 tonne side tipping semi-trailer for industrial transport

Specification

Dimension

9500mm*2500mmmm*3260mm

Main beam

Q345

Bucket material

T700

Axle

3 axles

Suspension

FUWA K-Hitch mechanical suspension

Tire

11R22.5 18 PR, 12 pcs

Rim

8.25-22.5, 12 pcs

Kin pin

2.0inch ,JOST brand, ADR standard

Painting

Customized

Design and Operational Advantages

Several things are key when considering the design and operational advantages of the 80 tonne roll-over trailer:

Designed with a low center of gravity: The risk of overturning during unloading is greatly reduced. This stability is critical when loading and unloading such large volumes and weights.

Large tilt angle: ensures efficient unloading of cargo without leaving residue. The trailers have a side-operated feature. This means they are site-independent. They can be used in many environments. In addition, they have a lift cylinder. This is an important addition. It helps get the trailer out of trouble if the load buries the tires.

Different types of tilting systems are available: Such as direct push and linkage, each with its own advantages. The straight push type has a simple structure with a long stroke, which is vital for unloading operations, while the link type has a more complex structure that effectively lifts the body of the van and gives it an even strength, thus reducing the amount of thrust required and ensuring greater efficiency of the hydraulic cylinders.

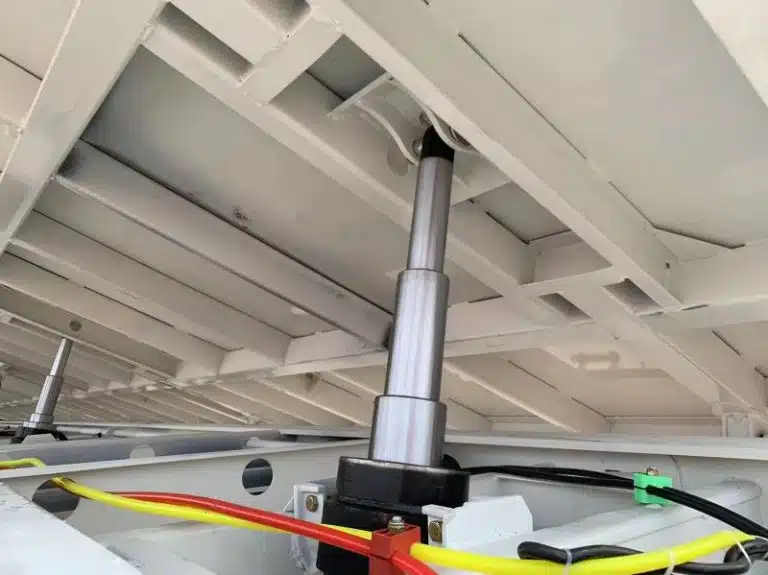

Hydraulic lift mechanism on the 80 tonne side tipper semi-trailer

Customization and Configuration Options

Hydraulic Systems: The hydraulic system is crucial for side tipper trailers. Customers can choose from a variety of systems, including different brands like HYVA. HYVA systems are known for their efficiency and durability. The choice of a single or double-acting hydraulic cylinder can also be tailored to the frequency and type of use.

Tires: The choice of tires is important for ensuring safety and efficiency. Options can range from on-road to off-road tires. The off-road tires have higher ply ratings to survive rough terrain. Some trailers may also offer the option to have super single tires for better fuel economy.

Removable Tailgates or Cages: For added versatility, trailers can be fitted with removable tailgates or cages. This allows for more types of materials to be transported. It ensures that even light, bulky cargo can be carried securely.

Axles: Axle configurations can be customized to suit different weight loads and distribution requirements. Brands like BPW or SAF are popular choices. You can also add axle lift systems to reduce tire wear when the trailer is empty.

Braking Systems: Customizing braking systems can include choosing between drum brakes and disc brakes. This choice depends on if the operator prefers easy maintenance or performance.

Additional Features: You can add many extra features. These include automatic tarpaulin systems for easy cover, onboard weighing systems for load management, and various liner materials to protect the bin and ease the unloading of sticky materials.

Material and Construction: The choice of materials is key. For example, high-tensile steel can be chosen for the body. The choice is based on the balance between durability and weight savings. This also extends to the thickness of the floor and walls of the trailer.
